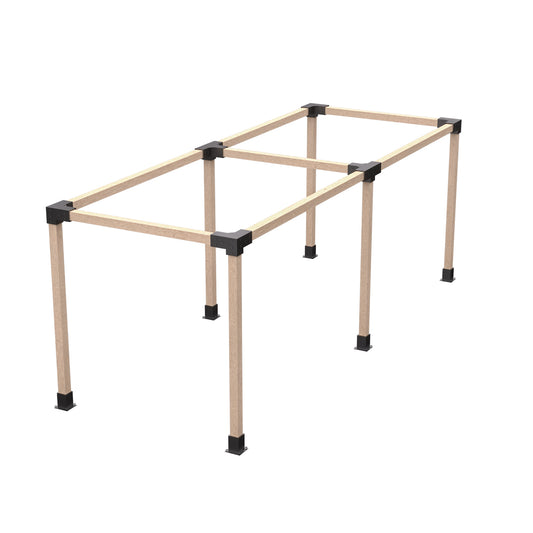

Double Pergola Kit for 4x4 Wood Posts
Double Pergola Kit for 4x4 Wood Posts
Couldn't load pickup availability
Long-lasting durability: Manufactured from heavy-duty galvanized steel，these pergola hardware boast stability and indestructibility. precision welding techniques ensure resistance against breakage and deformation，enhancing the pergola's stability.
Easy Installation: 4x4 Post bracket equipped with high-quality screws and expansion bolts，installation is swift and straightforward，requiring no intricate steps.
Rust and Corrosion Resistance: Constructed from galvanized steel and coated with durable paint，these wooden gazebo kits resist rust，maintaining their shine over the long term.
User-friendly Design: Featuring specially designed hooks for attaching sunshade fabric， these pergola brackets 4x4 cater to various sunshade or decorative needs，adding practicality and aesthetics to your outdoor space.
Versatile Applications: Ideal for diverse spaces like terraces，lawns, balconies，screen rooms，and commercial areas， these wood pergola kit provide reliable support， making them the perfect fit for any location.
TIPS
TIPS
TIPS
GENERAL
We recommend taking a bracket with you when you purchase your wood to test fit.
WOOD
Our 4x4 brackets accommodate dressed lumber, commonly called 4x4’s at local building supplies. The actual measure is 3.6x3.6”.
SCREWS
- Each bracket only requires 3 screws per each side/set of three holes.
- Insert screws in holes closest to the wood.
- Hardware to secure to wood is included.
- Additional screws are available for purchase
INCLUDED
INCLUDED
INCLUDED
- 4x TRIO corner brackets
- 6x SOLO base/wall brackets
- 2x QUAD extension bracket
- Screw kit (enough for your use)
- Expansion bolt kit(enough for your use)
NOT INCLUDED
- Wood
Shipping wood is costly. Most of the population has access to stores that sell wood locally where they live. Buying your lumber allows you the freedom to select the type of wood you want to use for your build and budget. There are also regional limitations for what kind of lumber is ideal for your build; different species of lumber would be used in tropical climate vs. a cold one.
INSTRUCTIONS
INSTRUCTIONS
DOUBLE ANY SIZE PERGOLA BUILD
WHAT YOU NEED
Drill(s)
Measuring Tape
Cardboard (to be placed under the brackets to not scratch your surface or the brackets)
LUMBER
When purchasing your lumber, always take a bracket with you to ensure a proper fit.
You can select whatever lumber suits your style and budget. It must be dry and straight.
Brackets use dressed lumber.
4”x4” (3.5”x3.5”) Bracket Cavity is 3.61”x3.61”
6”x6” (5.5”x5.5”) Bracket Cavity is 5.62”x5.62”
SCREWS
Each bracket only requires 3 screws per each side/set of three holes.Hardware to secure to wood is included.
1-1/2” Pan Rob/Phil combo drive wood screws.
Additional screws are available for purchase.SECTION 1 BUILDING THE TOP
BUILDING A ‘U’: Insert your lumber into the brackets, creating a U. See figure 1.
BUILDING AN ‘I’: Insert your lumber into the remaining brackets. See figure 2.
Secure bracket to lumber with provided screws.

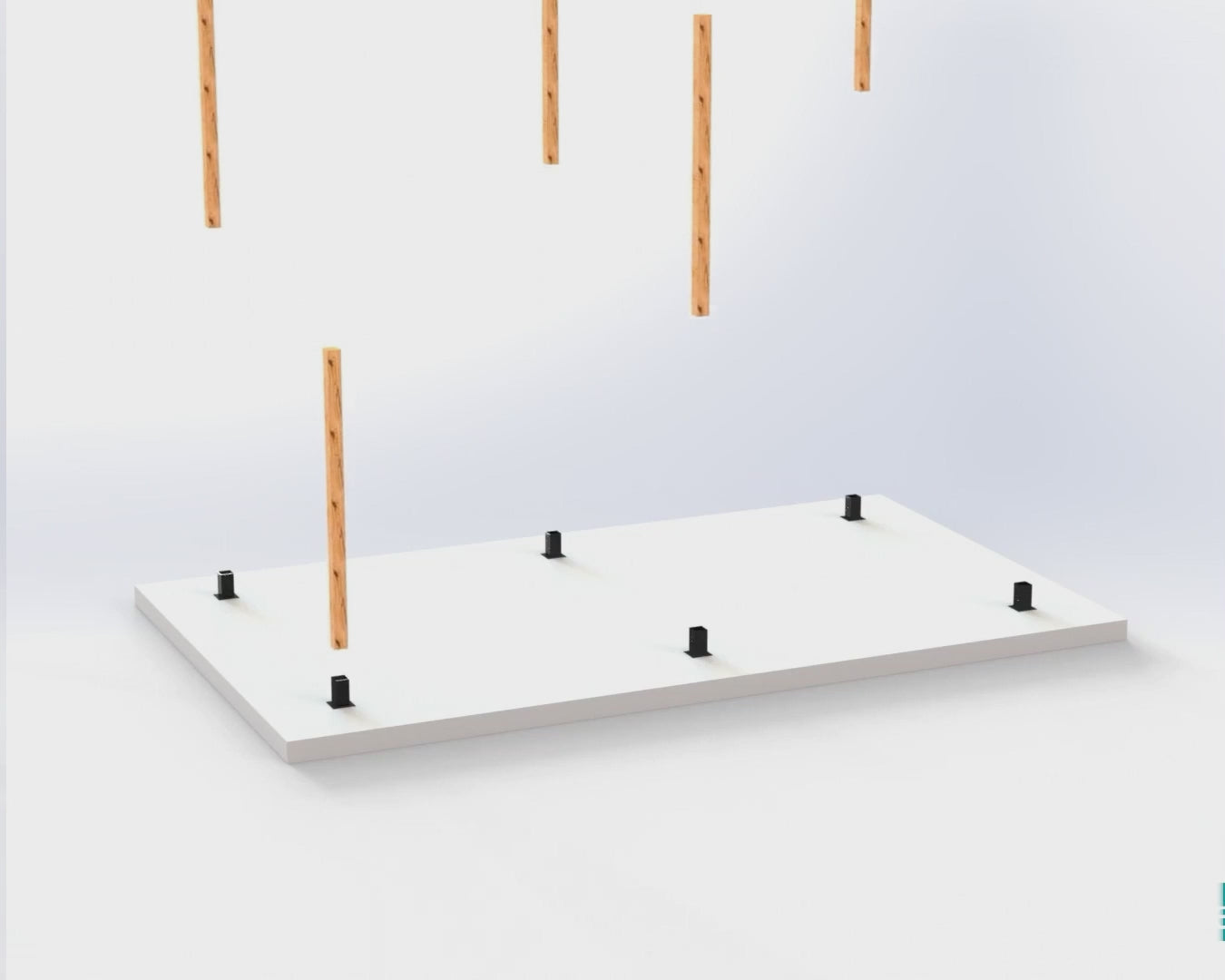

SECTION 2 INSERT THE POSTS
Insert your vertical posts on the first side.
Secure bracket to lumber with provided screws.
SECTION 3 INSERT THE POSTS
Add vertical posts into QUADs.
Secure bracket to lumber with provided screws.

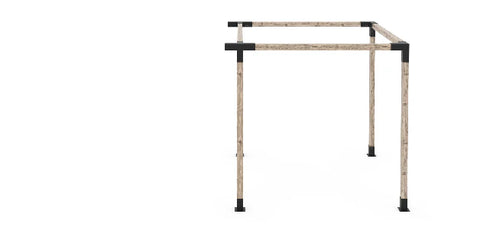

The first half of the double pergola has now been built.
SECTION 4 BUILDING THE SECOND SIDE
Insert lumber into the second side.
Secure bracket to lumber with provided screws.
SECTION 5 COMPLETE
Lift and slide into the first side.
Secure bracket to lumber with provided screws.
Anchor to your surface.
