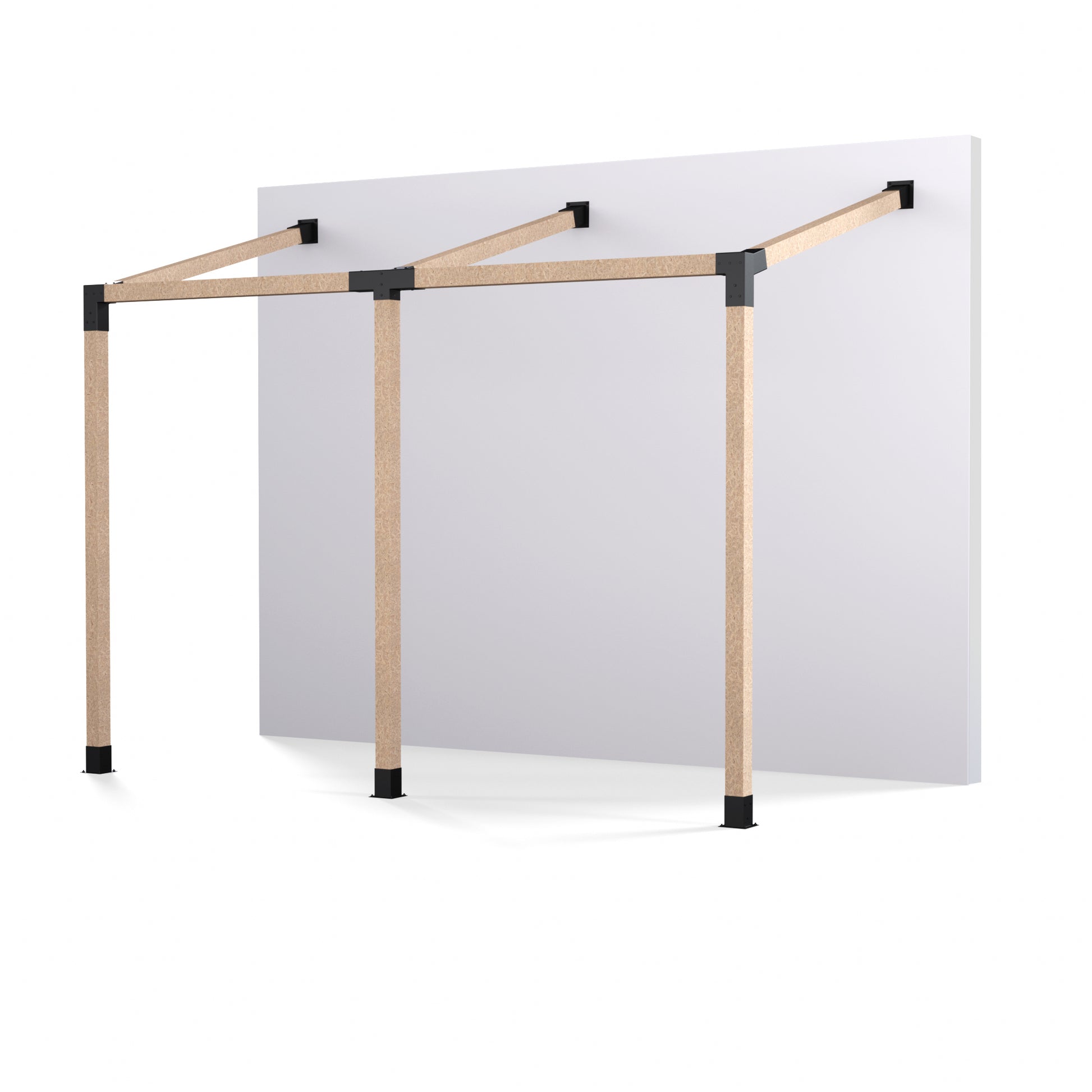

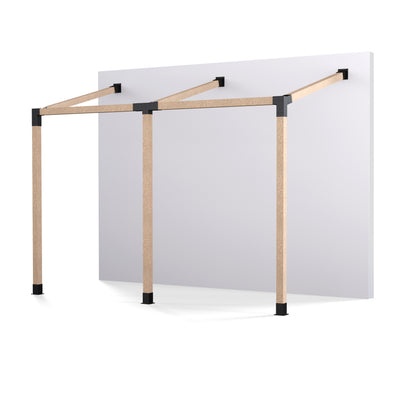

Double Wall Mount Pergola Kit for 4x4 Wood Posts

Double Wall Mount Pergola Kit for 4x4 Wood Posts

$209.99 USD
$256.99 USD $209.99 USD
Sale Sold out
Shipping calculated at checkout.
PayPal Visa Mastercard American Express Discover

Long-lasting durability: Manufactured from heavy-duty galvanized steel，these pergola hardware boast stability and indestructibility. precision welding techniques ensure resistance against breakage and deformation，enhancing the pergola's stability.

Easy Installation: 4x4 Post bracket equipped with high-quality screws and expansion bolts，installation is swift and straightforward，requiring no intricate steps.

Rust and Corrosion Resistance: Constructed from galvanized steel and coated with durable paint，these wooden gazebo kits resist rust，maintaining their shine over the long term.

User-friendly Design: Featuring specially designed hooks for attaching sunshade fabric， these pergola brackets 4x4 cater to various sunshade or decorative needs，adding practicality and aesthetics to your outdoor space.

Versatile Applications: Ideal for diverse spaces like terraces，lawns, balconies，screen rooms，and commercial areas， these wood pergola kit provide reliable support， making them the perfect fit for any location.

Ideal for Wall Mount Pergolas: The 15 degrees pergola bracket kit perfectly supports wall mount gazebos, ensuring a reliable and secure attachment to your walls.

TIPS

TIPS

GENERAL

We recommend taking a bracket with you when you purchase your wood to test fit.

WOOD

Our 4x4 brackets accommodate dressed lumber, commonly called 4x4’s at local building supplies. The actual measure is 3.6x3.6”.

SCREWS

  • Each bracket only requires 3 screws per each side/set of three holes.
  • Insert screws in holes closest to the wood.
  • Hardware to secure to wood is included.
  • Additional screws are available for purchase

INCLUDED

INCLUDED

  • 1 x 4-way Central bracket
  • 2x 15° TRIO corner brackets
  • 3x 15° SOLO wall brackets
  • 3x SOLO base brackets
  • Screw kit (enough for your use)
  • Expansion bolt kit (enough for your use)

NOT INCLUDED

  • Wood
    Shipping wood is costly. Most of the population has access to stores that sell wood locally where they live. Buying your lumber allows you the freedom to select the type of wood you want to use for your build and budget. There are also regional limitations for what kind of lumber is ideal for your build; different species of lumber would be used in tropical climate vs. a cold one.

INSTRUCTIONS

DOUBLE ANY SIZE WALL MOUNT PERGOLA BUILD

WHAT YOU NEED

Ladder(s)

Drill(s)

Measuring Tape

Cardboard (to be placed under the brackets to not scratch your surface or the brackets)

LUMBER

When purchasing your lumber, always take a bracket with you to ensure a proper fit.

You can select whatever lumber suits your style and budget. It must be dry and straight.

Brackets use dressed lumber.
4”x4” (3.5”x3.5”) Bracket Cavity is 3.61”x3.61”
6”x6” (5.5”x5.5”) Bracket Cavity is 5.62”x5.62”

SCREWS

Each bracket only requires 3 screws per each side/set of three holes.

1-1/2” Pan Rob/Phil combo drive 125 S.S Wood screws.

Insert screws in holes closest to the wood.

Hardware to secure to wood is included.

Additional screws are available for purchase.

SECTION 1 BUILDING THE TOP

BUILDING A ‘U’: Insert your lumber into the TRIO and QUAD brackets. See figure 1.

Add SOLO brackets. See figure 2.

Secure bracket to lumber with provided screws.

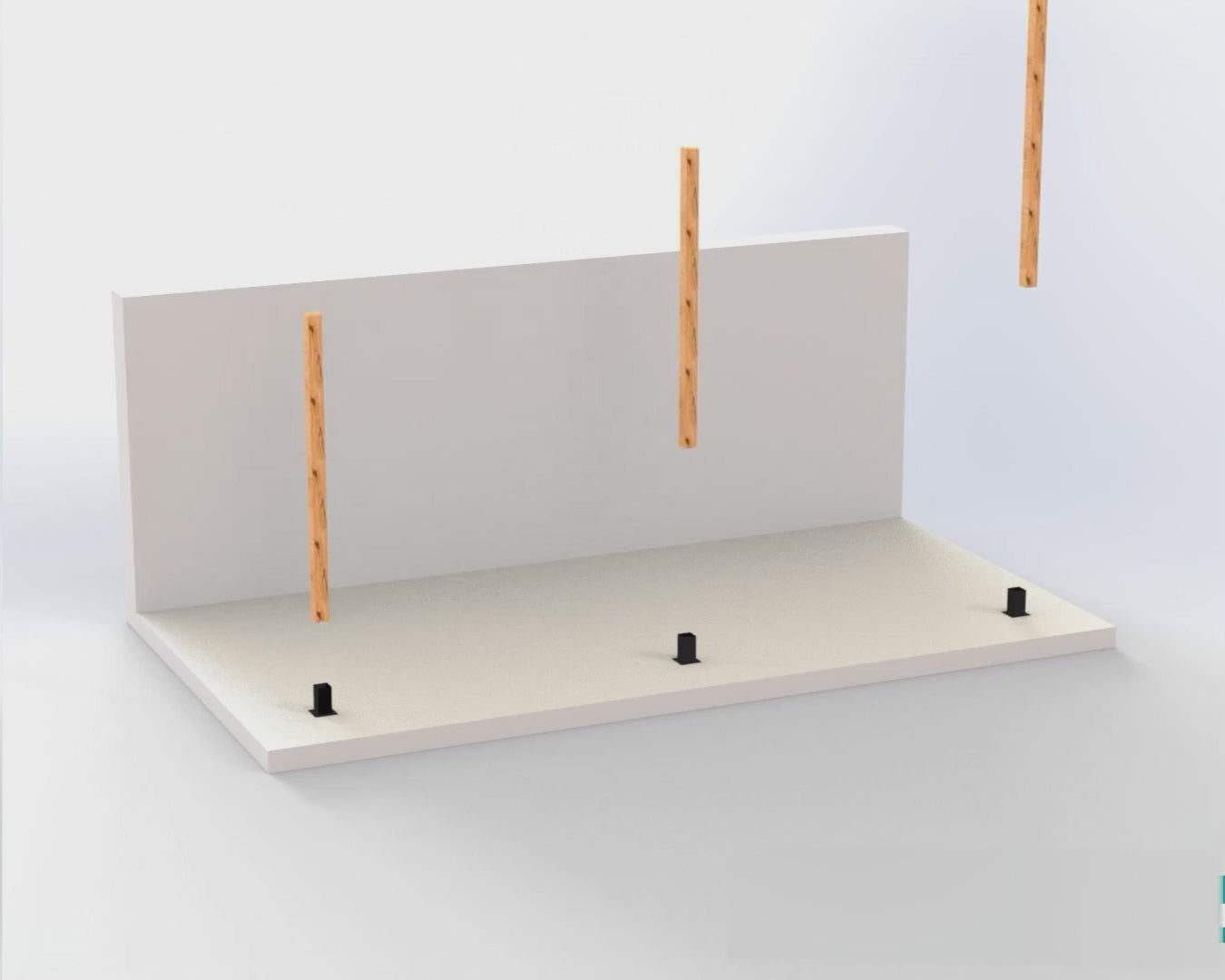

SECTION 2 INSERT THE POSTS

Insert your vertical posts.

Secure bracket to lumber with provided screws.

SECTION 3 MOUNT TO WALL

Carefully walk your pergola up the wall.

Level and anchor your wall mounted SOLO brackets to the wall.

SECTION 4 BUILDING THE SECOND SIDE

Insert lumber into the second side.

Secure bracket to lumber with provided screws.

SECTION 5 COMPLETE

Lift and slide into the first side.

Secure bracket to lumber with provided screws.

Level and anchor your wall mounted SOLO bracket to the wall.

Anchor to your surface.
