Double Wall-Mount Pergola Build Instructions (Any Size)

How to assemble the Jurrque double wall mount pergola kit with your own 4x4 lumber: build the top, insert the posts, mount the first side to the wall, then add and anchor the second side.

  • 5 steps
  • 6 part types in the kit
  • Lumber not included
Start with step 1

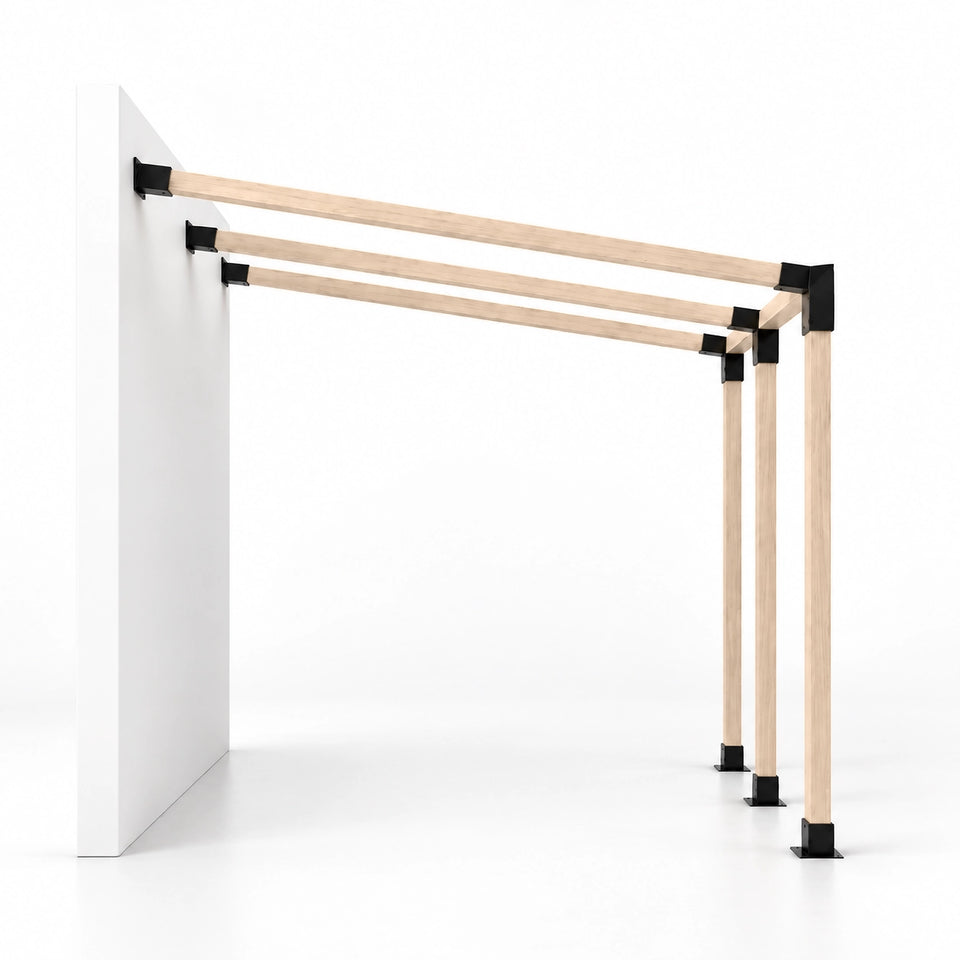

Double Wall Mount Pergola Kit for 4x4 Wood Posts – wall-mounted frame view

Fits these kits

In this guide5 steps

What's in the box

  • 215° 3-way corner brackets TRIO
  • 115° 4-way center bracket QUAD
  • 315° wall-mount brackets SOLO
  • 3Post-base brackets
  • 168Screws
  • 30Expansion bolts

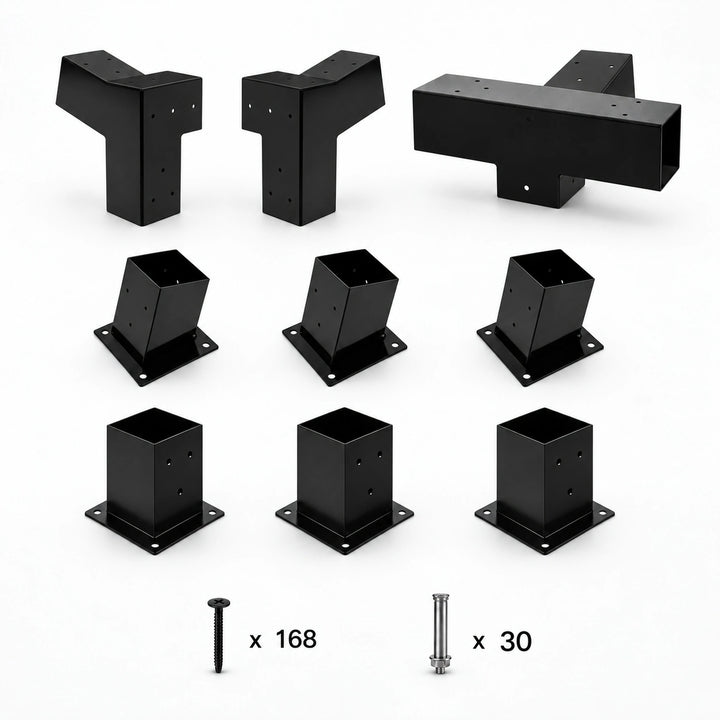

Double Wall Mount Pergola Kit for 4x4 Wood Posts – brackets, bases and screws

The kit includes brackets and hardware only. Lumber is not included.

Lumber you'll need

PieceQtySizeLength
Posts Qty3 Size4x4 (actual 3.5 x 3.5 in.) LengthYour choice; the product diagram shows 8 ft
Top beams3 from the wall to the front and 2 across the front Qty5 Size4x4 (actual 3.5 x 3.5 in.) LengthYour choice; the product diagram shows spans up to 12 ft per section

Counts are for the standard layout shown in the product diagram. Choose lengths to suit your space.

  • When purchasing your lumber, always take a bracket with you to ensure a proper fit.
  • You can select whatever lumber suits your style and budget. It must be dry and straight.
  • The brackets are sized for dressed 4x4 lumber, which measures 3.5 x 3.5 in. (bracket cavity 3.61 x 3.61 in.).

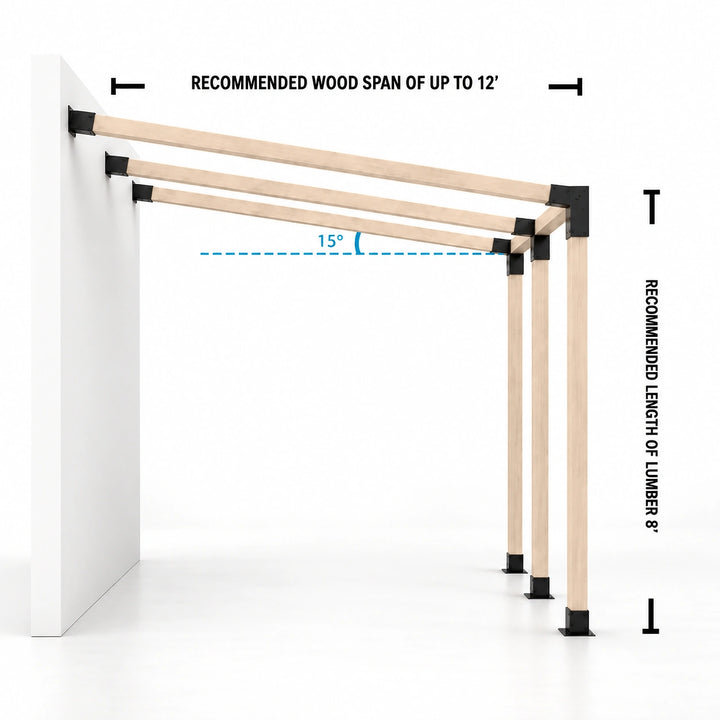

Double Wall Mount Pergola Kit for 4x4 Wood Posts – 15° slope and span diagram

Tools & hardware

What you need

  • Ladder(s)
  • Drill(s)
  • Measuring tape
  • Cardboard (placed under the brackets so they don't scratch your surface or the brackets)

Screws

  • Each bracket only requires 3 screws per side (each set of three holes).
  • 1-1/2 in. pan-head wood screws with a Robertson/Phillips combo drive.
  • Insert screws in the holes closest to the wood.
  • Hardware to secure the brackets to the wood is included.
  • Additional screws are available for purchase.

Step-by-step instructions

  1. Step 1 Build the top

    • Build a “U”: insert your lumber into the TRIO and QUAD brackets.
    • Add the SOLO brackets.
    • Secure each bracket to the lumber with the provided screws.

    Tip: Place cardboard under the brackets so they don't scratch your surface or the brackets.

  2. Step 2 Insert the posts

    • Insert your vertical posts.
    • Secure each bracket to the lumber with the provided screws.

  3. Step 3 Mount to the wall

    • Carefully walk your pergola up the wall.
    • Level and anchor your wall-mounted SOLO brackets to the wall.

  4. Step 4 Build the second side

    • Insert lumber into the second side.
    • Secure each bracket to the lumber with the provided screws.

  5. Step 5 Complete the frame

    • Lift the second side and slide it into the first side.
    • Secure each bracket to the lumber with the provided screws.
    • Level and anchor your wall-mounted SOLO bracket to the wall.
    • Anchor to your surface.
